UL 1015 Product Series | ||||||
|
Quota temperature |
105℃ |
| ||||
|
Quota voltage |
600V | |||||
|
UL file number |
E328945 | |||||
|
Product Standards |
UL758,UL1581 & CSA C22.2 No.210.2 | |||||
|
Environmental requirements |
ROHS、REACH | |||||
|
Insulation material |
PVC | |||||
|
Product color |
Regular color or according to customer requirements color | |||||
|
Applications |
Applicable to electrical and electronic equipment internal wiring | |||||
|
Printing logo |
E328945 UL AWM 1015 105℃ 600V □□AWG VW-1 C UL AWM I A 105℃ 600V □□AWG FT1 DE XING LONG | |||||
|

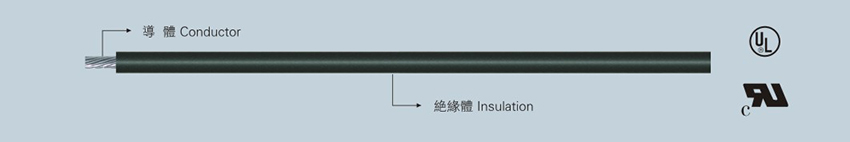

Product Structure | ||||||
|
specification |
Conductor structure(No/mm) |
Conductor type |
Insulation thickness(mm) |
Complete outer diameter(mm) |
Maximum conductor DC resistance(Ω/km,20℃) | |
|
26AWG |
7/0.16 |
Stranded tinned copper or stranded bare copper |
0.79 |
2.05 |
150 | |
|
24AWG |
11/0.16 |
0.80 |
2.20 |
94.2 | ||
|
22AWG |
17/0.16 |
0.79 |
2.35 |
59.4 | ||
|
20AWG |
21/0.178or26/0.16 |
0.80 |
2.55 |
36.7 | ||
|
18AWG |
34/0.178or41/0.16 |
0.79 |
2.80 |
23.2 | ||
|
16AWG |
26/0.254 |
0.81 |
3.10 |
14.6 | ||
|
14AWG |
41/0.254 |
0.81 |
3.50 |
8.96 | ||
|
12AWG |
65/0.254 |
0.82 |
4.00 |
5.64 | ||
|
10AWG |
105/0.254 |
0.81 |
5.00 |
3.54 | ||
|
Performance Testing | ||||||
|
Withstand voltage test |
2000V/1minute |
No breakdown | ||||
|
Spark test |
6000V |
No breakdown | ||||
|
Aging test |
Aging conditions 136±1℃/168hour |
tensile strength |
Elongation | |||
|
Before aging |
≥1500 PSI |
≥100% | ||||
|
After aging |
≥70%（Original value） |
≥65%（Original value） | ||||
|
Thermal shock test |
Oven aging 136±1℃/1hour |
Insulation does not crack | ||||
|
Thermal deformation test |
Oven aging 121±1℃/1hour×250g |
Insulation thickness reduction rate does not exceed50% | ||||
|
Cold bending test |
Low temperature treatment -20±2℃/4hour |
Insulation does not crack | ||||
|
Combustion test |
UL VW-1 |
After the flame is extinguished, the ignition time does not exceed 60S | ||||
